Custom XLPE Cable with Drain Wire and Al-Mylar

Share to:
    Payment Type: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,FCA,CPT
    Min. Order: 3050 Meter
    Delivery Time: 10 Days

Basic Info

Model No.: FVC-003

Type: Insulated

Conductor Type: Stranded

Conductor Material: Copper

Insulation Material: XLPE

Material Shape: Round Wire

Range of Application: LSOH

Certification: RoHS, UL, CE, ISO9001

Sheath Material: Crosslinking

Additional Info

Packaging: Coil, Spool, Carton

Productivity: 50km per week

Brand: Feyvan

Transportation: Ocean,Air

Place of Origin: Jiangsu, China

Certificate: ISO9001, ISO14001

HS Code: 8544492900

Port: Shanghai,Taizhou,Guangzhou

Product Description

Feyvan Electronics supplies custom halogen free multicore electrical wire with XLPE & PE insulated and XLPE & FRPE jacketed.

We can satisfy your unique end-use requirements by adding AL-mylar, shielding and cotton and PVC strip fillers etc.

Rated temperature range can be changed by using different PE material compounds.

XLPE insulation material also with excellent heat resistance and mechanical strength is more steady, low dielectric loss than PVC insulation material. It has the properties of excellent electrical performance, aging resistance, chemical corrosion and strong load capacity as well.

Applications e.g. general internal wiring of electronic appliance and electrical equipment lead wire of motor, lamp, high-performance appliance and equipment where rated temperature not exceeding 150.


Technical Date:

- Rated temperature: 105,125℃ & 150℃ optional

- Rated voltage: 300V & 600V optional

- Reference standard: UL subject 758, UL1581

- Conductor: 30-10AWG tinned or bare, stranded or solid copper

- Insulation: XLPE & PE with multiple colors to choose

- Jacket: XLPE & FRPE with multiple colors to choose, fillers optional

- Uniform insulation thickness to ensure easy stripping and cutting

- Passed UL VW-1, cUL FT1 and JQA F-mark flame test


Customized XLPE insulation and XLPE jacket cable


Part Name

Conductor

Construction

Drain Wire

Insulation XLPE

Jacket XLPE

Thickness

mm

Diameter

mm

Thickness

mm

Diameter

mm

Custom XLPE

3C AWG22

19/0.16

3C+Fillers

+Drain Wire+ 100% Al-Mylar

7/0.32

0.76

2.35

0.76

7.20


Package options:

Package

Looking for ideal UL20276 PVC Custom XLPE Wire Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Drain Wire in Cable Sheath are quality guaranteed. We are China Origin Factory of Aluminum Mylar Foil Shield Cable. If you have any question, please feel free to contact us.

Product Categories : Electronic Wire > Motor Wire

Product Images

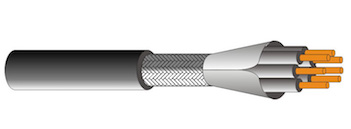

  • Custom XLPE Cable with Drain Wire and Al-Mylar
